Quartz Sand Linear Vibrating Screen Triple Deck Screen
Introduction of High Yield Quartz Sand Multi-deck Light Vibrating Linear Screen Separator:
High Yield Quartz Sand Multi-deck Light Vibrating Linear Screen Separator is an efficient new screening equipment, which widely used in mining, coal, metallurgy, building materials industry, two sets of horizontal vibration motor to be power source, so that the screened material was tossed in the sieve, while forward in a straight line into the screening machine’s discharging outlet. It can be supplied of different sizes depending on capacity required. And can be supplied of multi-layer as requirements of screening aim. Inlets, outlets and legs can be customized to fit your installation requirements.
We produce both light and heavy-duty type linear vibrating screen which is suitable for anything, from screening off fine particles as product moves along a feeding line, to those specifically designed for separating out complex and irregular shapes using a special purpose screen.
Important Information About High Yield Quartz Sand Multi-deck Light Vibrating Linear Screen Separator:
| Shape | rectangular shape |
| Motion | linear motion |
| Structural Composition | screen box, screen, vibration motor, motor base, damping spring, support etc. |
| Vibrating Motor | two sets of horizontal vibrating motors, synchronous reverse rotation |
| Applicable Material | suitable for sieving 0.074mm~10mm non-sticky materials with moisture content less than 7% |
| Screen Surface | horizontal or inclined (0°~7°) |
| Layers of Screen | 1~6 layers of screen (The higher layers can be customized according to the actual situation) |
| Screen Frame | wooden screen frame, carbon steel screen frame, stainless steel screen frame etc. |
| Mesh Cleaning Method | bouncing balls, ultrasonic system etc. |
| Material | carbon steel, stainless steel 304/316L, titanium material etc. |
| Screen Size | screen width*length 500*2000mm, 500*2500mm, 1000*2000mm, 1000*2500mm, 1000*3000mm, 1000*4000mm, 1200*2500mm, 1200*3500mm, 1200*4000mm, 1500*3500mm etc. |
| Application | plastic particle, tea, chemical fertilizer, lysine, urea, organic fertilizer, limestone, fodder, feeding stuff, refractory material etc. |
| Surface Treatment | Sand blasting, plastic spraying, spray paint, mirror polishing etc. |
Working Principle of High Yield Quartz Sand Multi-deck Light Vibrating Linear Screen Separator:
The screen box of the linear vibrating sieve machine does self-synchronous rotation along the opposite direction depending on double vibration motors, which makes the whole linear vibrating screen machine supported on damper do linear motion. Materials go through the screen loosely and move forward after falling into the screen box from inlet and then finish the separating work finally.
Technical Parameters of High Yield Quartz Sand Multi-deck Light Vibrating Linear Screen Separator:
| Model | Nominal Size (mm) | Particle Size (mm) | Leaning Angle of Screen (°) | Amplitude (mm) | Layer | Power (Kw) |
| AZ-520 | 500*2000 | 0.074~10 | 0~7° | 4~10 | 1~6 | 2*(0.4~0.75) |
| AZ-525 | 500*2500 | 2*(0.4~0.75) |
| AZ-530 | 500*3000 | 2*(0.4~0.75) |
| AZ-1020 | 1000*2000 | 2*(0.4~0.75) |
| AZ-1025 | 1000*2500 | 2*(0.4~1.1) |
| AZ-1030 | 1000*3000 | 2*(1.1~1.5) |
| AZ-1040 | 1000*4000 | 2*(1.1~1.5) |
| AZ-1225 | 1200*2500 | 2*(1.1~1.5) |
| AZ-1235 | 1200*3500 | 2*(1.1~2.2) |
| AZ-1250 | 1200*5000 | 2*(1.1~2.2) |
| AZ-1535 | 1500*3500 | 2*(1.1~2.2) |
| AZ-1560 | 1500*6000 | 2*(2.2~3.7) |
| AZ-1845 | 1800*4500 | 0.074~15 | 2*(2.2~3.7) |
| AZ-2050 | 2000*5000 | 2*(2.2~3.7) |
| AZ-2060 | 2000*6000 | 2*(2.2~3.7) |
Note: The data in the table are for reference only. Our company reserve the right to modify the above data.
Structure of High Yield Quartz Sand Multi-deck Light Vibrating Linear Screen Separator:
The linear vibrating screener machines are composed of screen box, vibration motor, damping system and chassis. The screen box consists of chute, roof, screen frame, screen plate (mesh), wire gauze.
1. Vibration motor: the vibration motor use and maintenance method to see the vibration motor operating instructions.
2. Sieve box: welded by steel plate, with certain strength and rigidity, it is the main component of screen machine.
3. Screen Mesh: the screen mesh is perforated plate. The overall stiffness is good, solid and reliable.
4. Vibration damping spring: to prevent vibration from passing to the ground and support the full weight of the screen box. When installing, the spring must be perpendicular to the ground.
5. Motor pedestal: the motor pedestal of the down vibration type of sieve machine (the motor is installed under the sieve box) can be moved. The connecting screw must be tightened before using, Especially the new screening machine must be repeatedly tightened three days before trial, so as to avoid accidents caused by loosening.
6. Bracket: the bracket is used to support the screen box. It must be mounted perpendicular to the ground during installation. The bracket and sieve body part shall be joined by the compression spring.
Application of High Yield Quartz Sand Multi-deck Light Vibrating Linear Screen Separator:
1. Metallurgy industry: electrode powder, manganese dioxide, electrolytic copper powder, aluminum powder, lead powder, copper powder, ore, alloy powder, electric magnetic material, polishing powder, refractory material, etc.
2. Chemical industry: resin pigment, medicine, grease, paint, palette, cosmetic, etc.
3. Food industry: gourmet powder, starch, milk powder, yeast powder, sugar, salt, alkali, pollen, food additive, bean milk, juice, etc.
4. Abrasive material and ceramic industry: building sand, mica, alumina, abrasive,refractory material, slurry, etc.
5. Mechanical industry: casting sand, powder metallurgy, electromagnetic material and metal powder, etc.
6. Paper-making industry: coated slurry, exhaust liquid, paper making liquid and waste water reclamation, etc.
7. Mining industry: kaolin, alumina, carbon, quartz sand,titanium oxide, zinc oxide, etc.
8. Pollution treatment: waste oil, waste water,additives, activated carbon,etc.
Contact: Ms. Magie
E-mail: sale@aarealmachine.com
magiecn@gmail.com
WhatsApp/WeChat: 0086-15637361027
Website: https://www.aarealmachine.com
Product Tags:
|
|

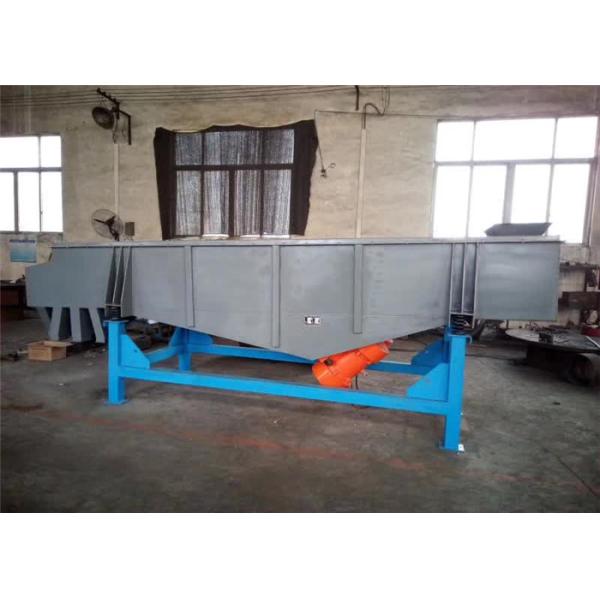

Quartz Sand Linear Vibrating Screen Triple Deck Screen Images
|
